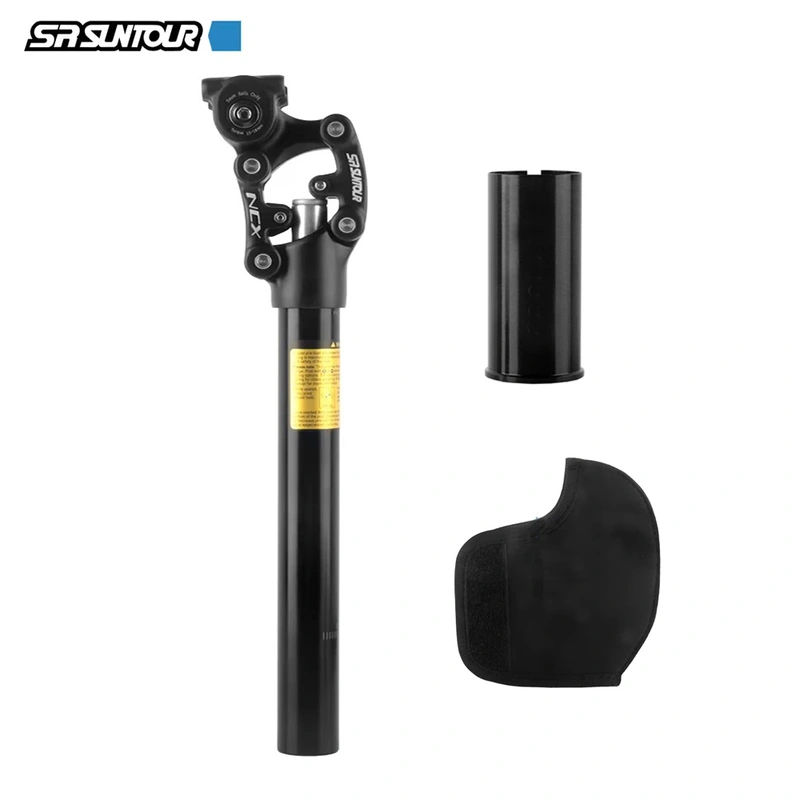

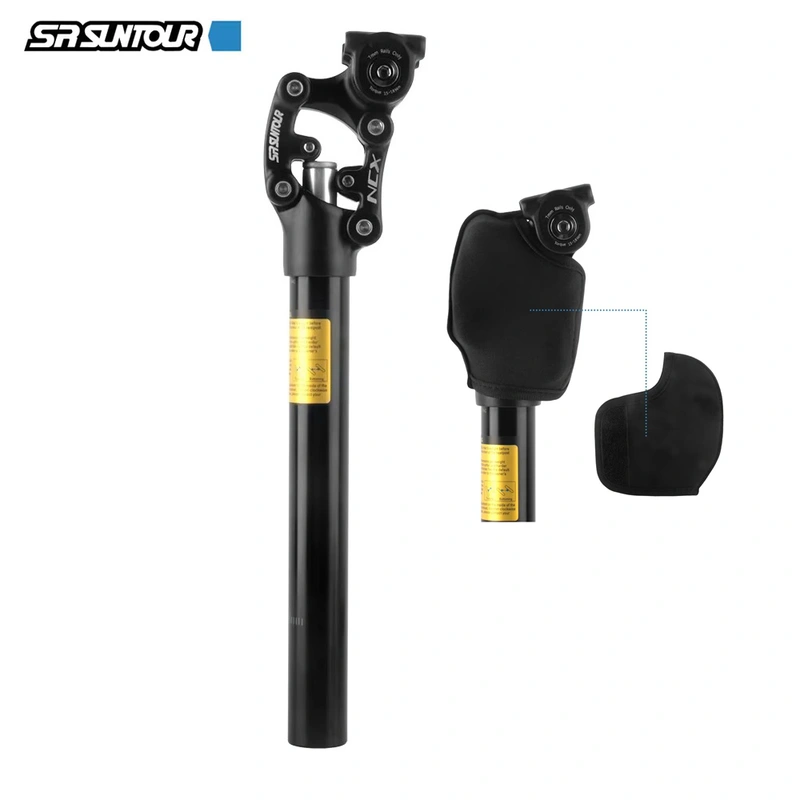

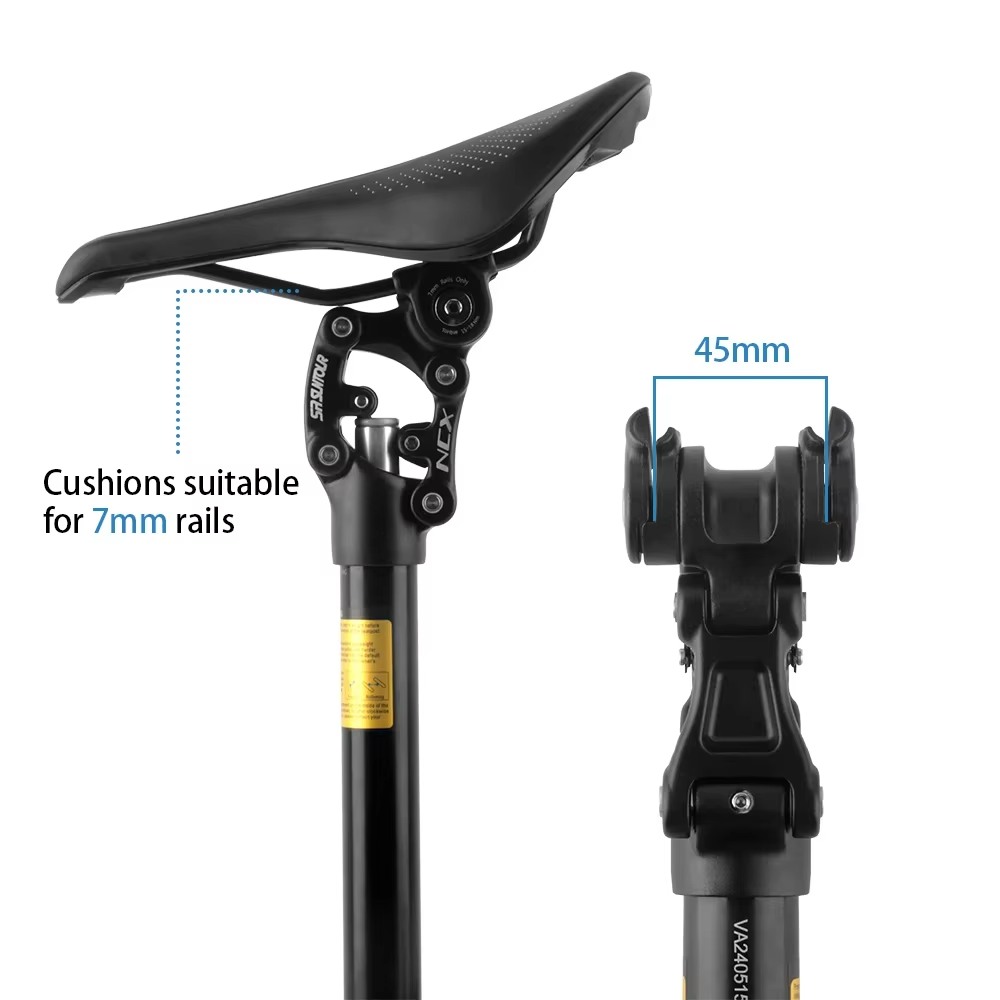

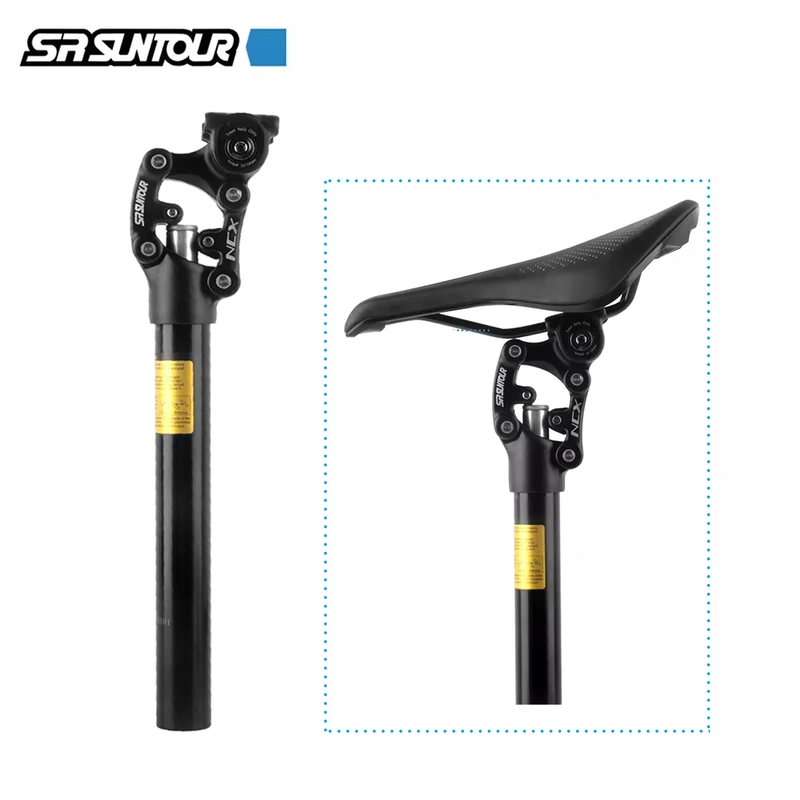

Sr Suntour NCX Suspension Seat Post Bikes Mountain Bicycle Saddle Shock Absorbers Four-Link Seat Tube with Protective Covers
Suitable for mountain bikes, mountain bikes, leisure bikes, gun style design, new shock absorption concept, aesthetically pleasing shape
Product size:

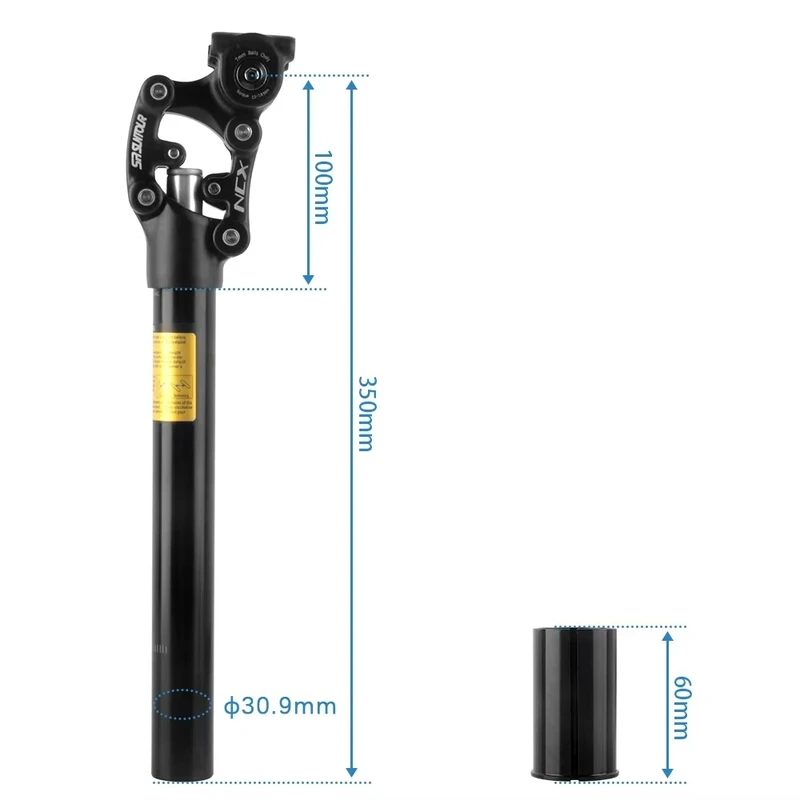

350mm long * 27.2mm diameter (all diameter sizes: 27.2/28.6/3)
0.0//30.4/30.8/31.6/33.9mm)
30.9mm seat tube purchase 30.8mm variable diameter sleeve seat tube
You can use it!
Shock absorber travel: 50MM
Material: Seat tube, outer tube made of aluminum alloy, and inner support rod made of high-strength steel. Sitting tube head with 2 rocker arms
External aluminum alloy, due to strength reasons. The interior of the seat tube rocker arm is made of high-strength steel.
Backward displacement distance: 25MM
Usage models: Mountaineering/Leisure/Mountain Bike/Station Wagon

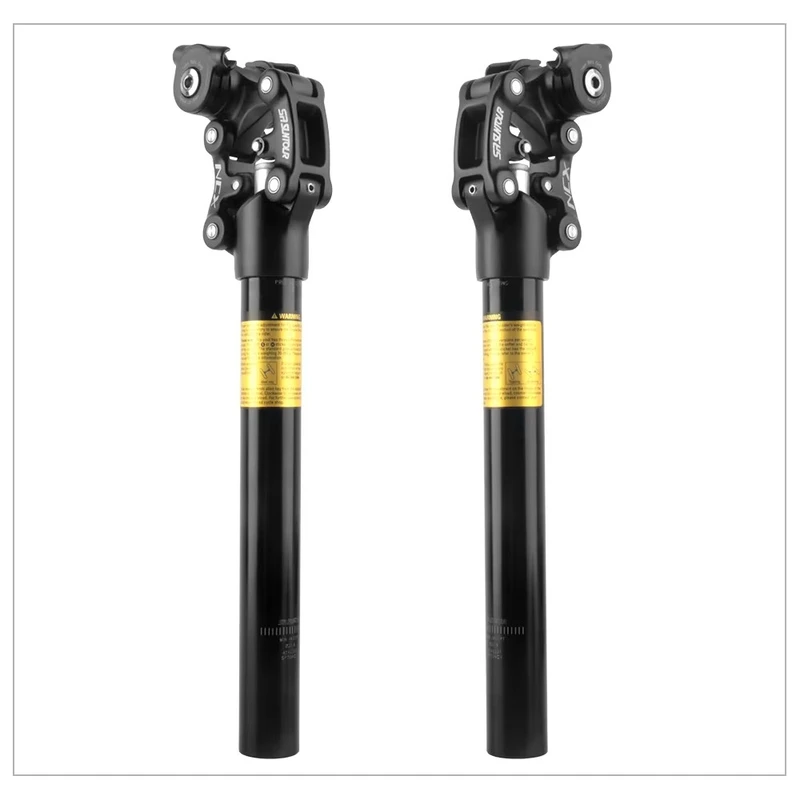

Color: sandblasted anode black/sandblasted anode silver
Weight: 800g
The main characteristics of the shock absorber tube are:

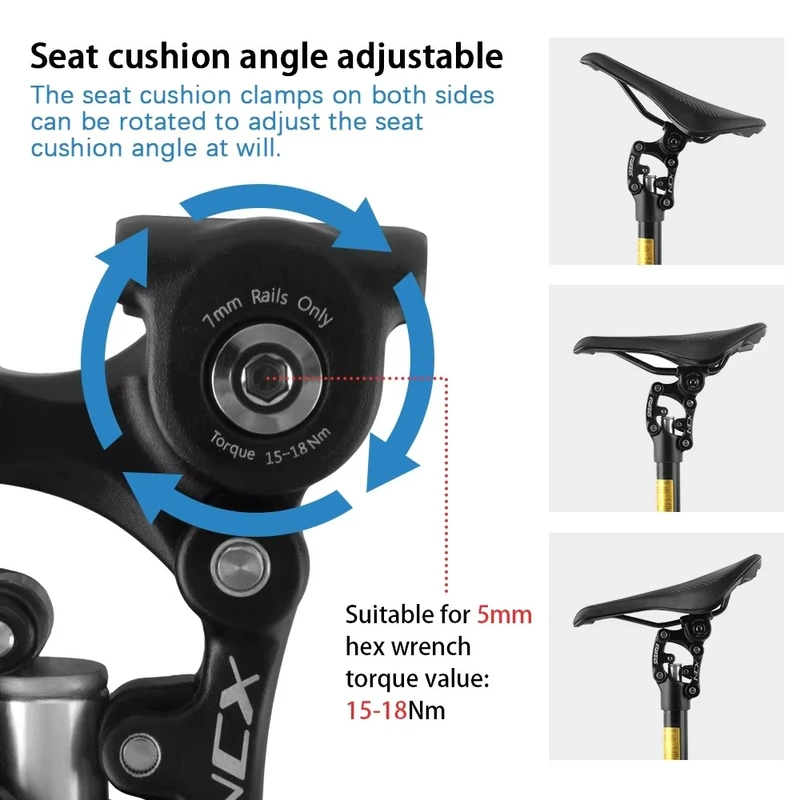

1. Adopting a new clamp block design (the seat tube height angle is more dense, providing better comfort,
2. Design and prepare various frame tube diameters: 27.2/28.6/30.0/30.4/30.9/31.6/33.9mm

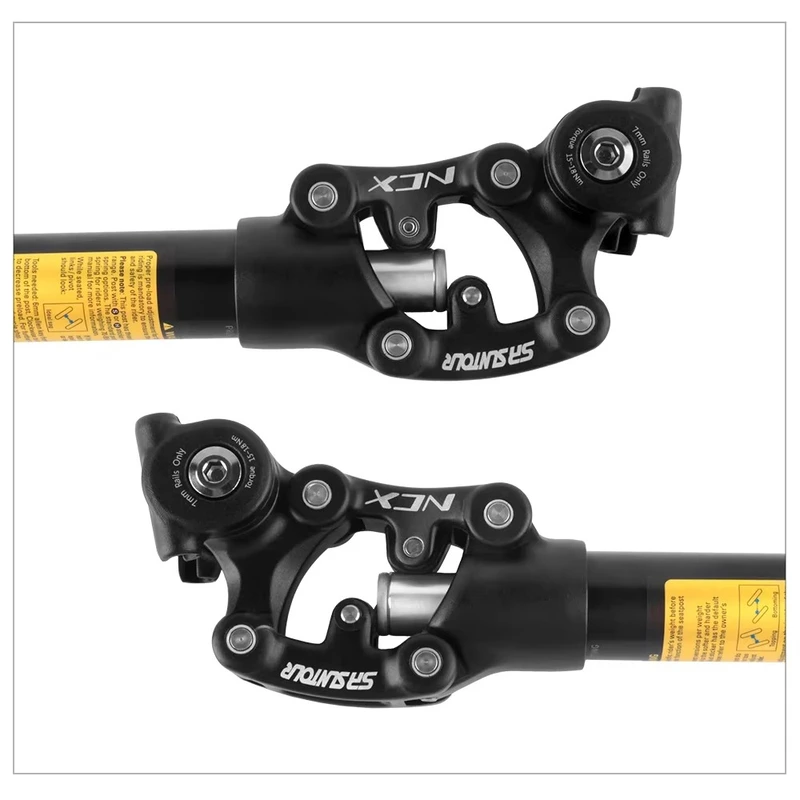

3. Parallel quadrilateral motion design/hard spring, soft spring, 350mm long
4. Suspension design_ ZH: Inner coil/steel sleeve parallelogram with preload adjustment

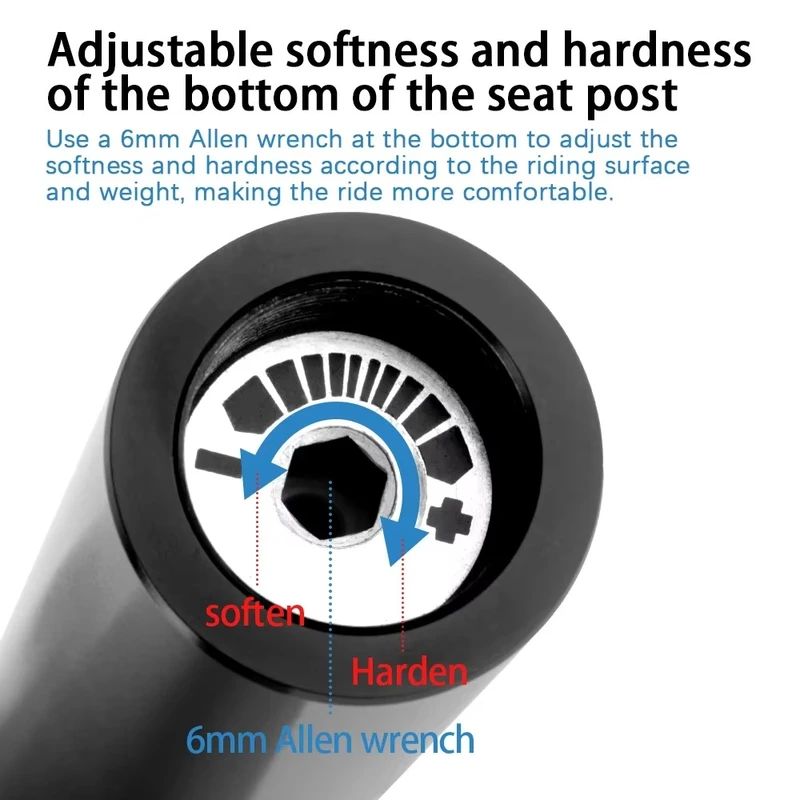

5. Pre tightening force adjustment
6. Black and silver finishes available for selection
7. Spare spring hard/soft available
8. Stainless steel liner
