CNC Machining Services

What is CNC Machining?

Computer Numerical Control(CNC) is a manufacturing process in which programmed in computer software dictates the movement of factory tools and machinery.Advanced programming software which optimized machine setting,cutting time,surface finish,and fine turning tolerance is used to control a CNC turning milling machines according to the instruction of clients’ CAD drawing file. In today’s CNC machining,the production of parts via pre-programmed software is mostly automated.The dimensions for a given part are set into place with computer-aided design(CAD) software and then converted into an actual finished product with computer-aided manufacturing software.CNC Parts production lines are not only to manufacture turning part work-pieces and prototypes,but also to build molding tools,which are to be used for the process of Plastic Injection Molding or Pressure Die Casting.



The Process can be used to control a range of complex machinery,from grinders and lathes to mills and routers. With CNC machining,3D cutting tasks can be accomplished in a single set of prompts.


Benefits of CNC Machining Services

CNC machining is a practical option for everything from prototype manufacturing to production runs. The following is the benefits of CNC Machining Services:


  1.   Quick turnaround

  2.   High accurate and can be repeated in exactly the same manner over and over again

  3.  Quick remove large amount of spare materials

      Wide range of materials,variety of plastics and metals

     Small and micro parts

      Low investment in tooling making and preparation


    Foxgeek Service Process

    CNC Machining Tolerances


    Standard Tolerance for CNC Machining

    The below table summarizes the standard tolerance of the parts produced

     by certified BOEN manufacturing partners
    Part Size / DimensionToleranceAngularity
    <12”(300mm)+/- 0.125mm+/- 0.5
    <24”(600mm)+/- 0.250mm+/- 1.0
    <36”(900mm)+/- 0.400mm+/- 1.0
    Large parts are reviewed on request,submit an order to begin.

    Size Limitations for CNC Machining in BOEN
    Maximal part size2000*1200*800mm
    Minimal part size0.5mm
    Minimal diameter0.3mm


  4. CNC Materials

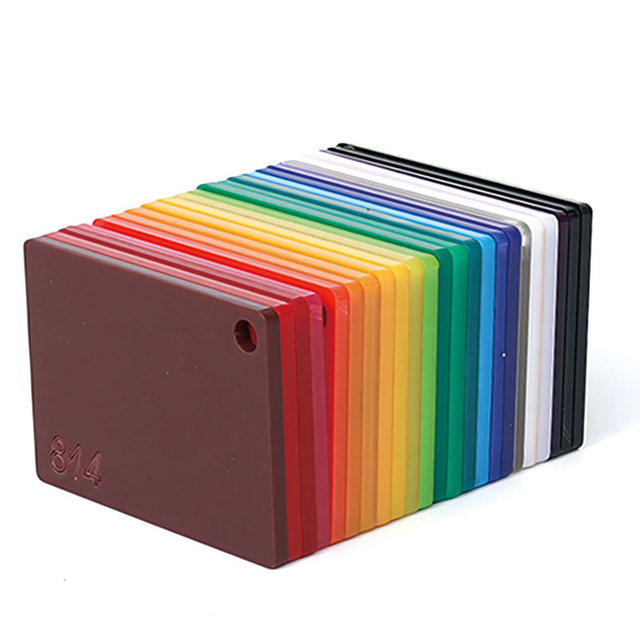

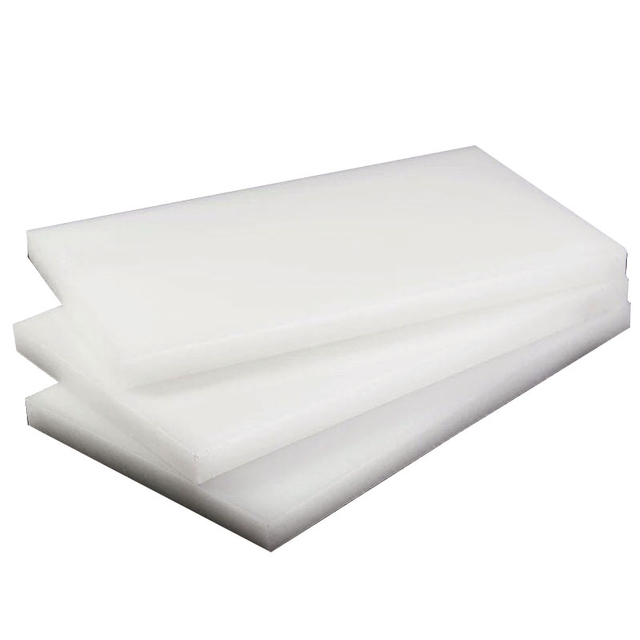

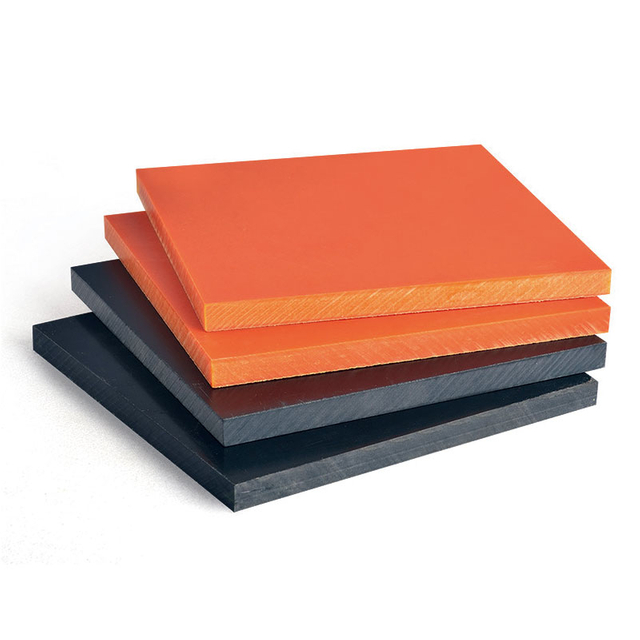

    Plastics : ABS, PP, PMMA(Acrylic), PC, POM(Delrin), PBT, Nylon(PA), PU, RESIN,PEEK,PE,PTFE(Teflon),G-10(FR-4), PVC,EVA,EPS, Ultum 1000( AMBER PEI )

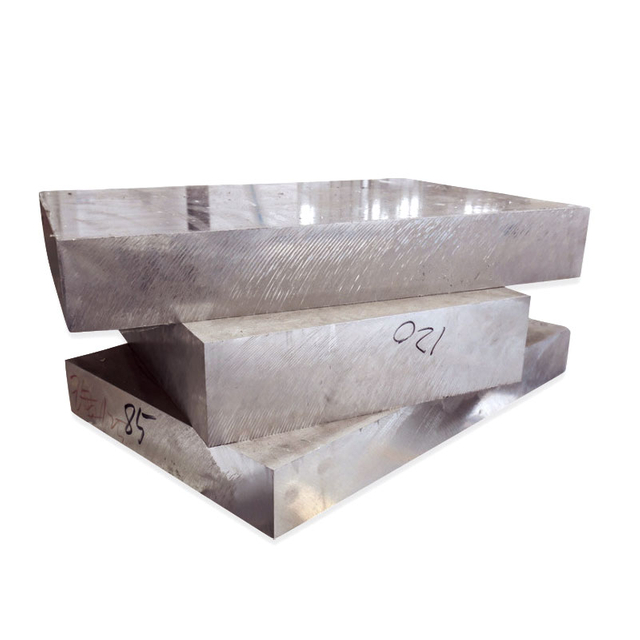

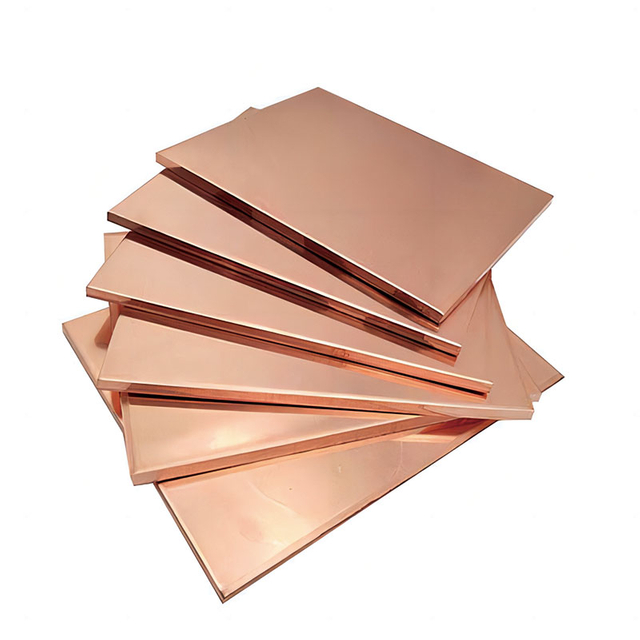

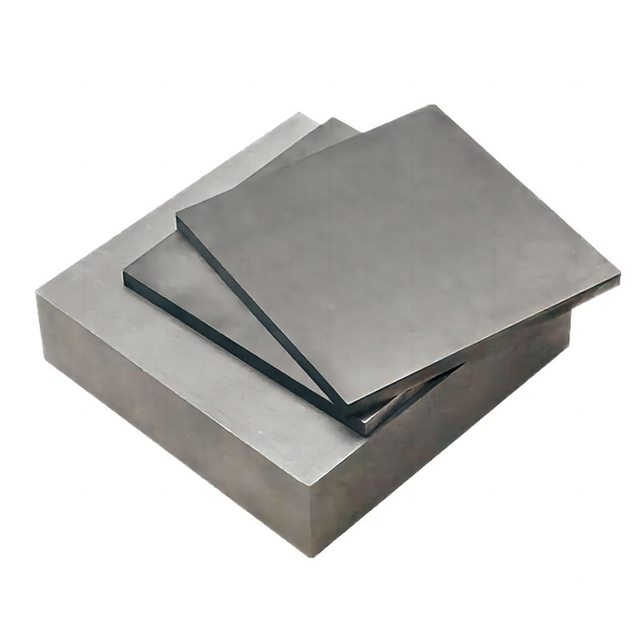

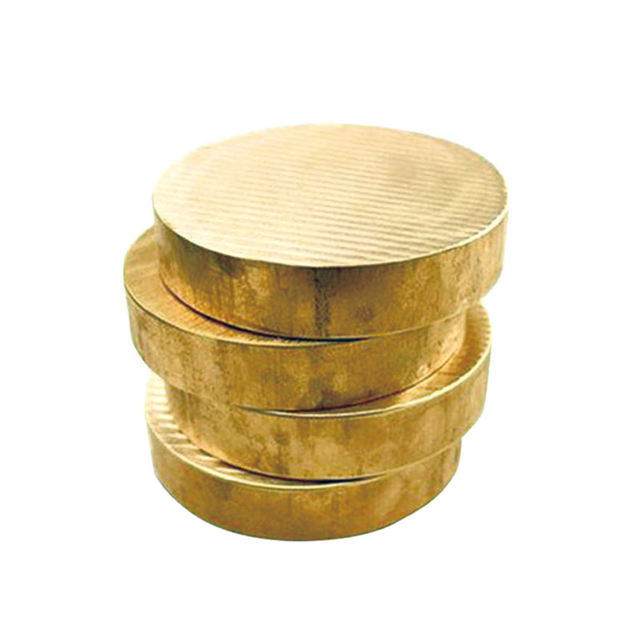

    Metals: Stainless Steel, Steel, Aluminium, Brass, Copper, Iron,Magnesium,Tool steel,Alloy Steel

    What’s More: We’re capable to create custom material like PA GF30 PPS30. It’s no problem for us to do further discovery for more materials. To get started with our team.
